Kawasaki Pump M2X210 Series
M2X210 Series Kawasaki Replacement Parts
We're happy to serve you with all your M2X210 parts. Most of our parts are in stock and ready to ship same day or next day, but if they're not, we'll be sure to communicate that clearly with you. We know it's important that you get your equipment back up and running quickly!
Take a look at our clear parts diagram of the M2X210 Series Kawasaki Pumps, and let us know which parts you need to get your pump back into action!
We work closely with online distributor Hydraparts.

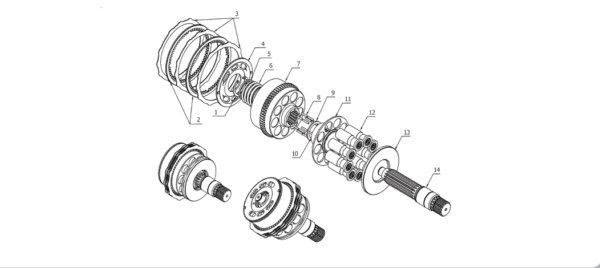

M2X210 Series Technical Drawing Guide
We are constantly adding inventory; if the part you are looking for isn’t listed, contact us to check its availability.
| No. | Part Name | Mission Part # |
|---|---|---|
| Seal Kit for Swing Motor Only | M2X210-SK | |
| 1 | Retaining Ring for Cylinder Block | M2X2310-1 |
| 2 | Friction Plate (Bronze) | M2X210-2 |
| 3 | Separation Plate (Steel) | M2X210-3 |
| 4 | Motor Valve Plate (A = 1 Hole on Bottom) | M2X210-4-A |
| 4 | Motor Valve Plate (B = 2 Holes on Bottom) | M2X210-4-B |
| 6 | Cylinder Block Spring | M2X210-6 |
| 7 | Cylinder Block (2 Friction Plates & 3 Separation Plates) | M2X210-7-A |
| 7 | Cylinder Block (3 Friction Plates & 4 Separation Plates) | M2X210-7-B |
| 8 | Push Rods (Pressure Pins) | M2X210-8 |
| 9 | Ball Guide Spacer | M2X210-9 |
| 10 | Ball Guide | M2X210-10 |
| 11 | Set Plate | M2X210-11 |
| 12 | Pistons | M2X210-12 |
| 13 | Shoe Plate | M2X210-13 |
| 14 | Drive Shaft | M2X210-14 |
| 15 | Front Bearing | M2X210-15 |
| 16 | Rear Bearing | M2X210-16 |
| 17 | Rear Bearing | M2X210-17 |
